Mini Size 4G GPS Tracking Device supports GPS/Beidou/Base station positioning

Name: Mini Size 4G GPS Tracking Device supports GPSBeidouBase station positioning
Brand: TBIT
Price: 1 USD

China Mini Size 4G GPS Tracking Device supports GPS/Beidou/Base station positioning factory

Brand Name : TBIT

Model Number : WD-108

Certification : CE, Rohs, CCC, ISO9001

Place of Origin : China

MOQ : 40pcs

Price : negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 30000pcs/Month

Delivery Time : 3-7 days after payment done

Packaging Details : Carton size: 49*27*19CM 20pcs/ Carton

Type : GPS tracker device for vehicle

Model : WD-108

SIM card : nano-SIM

Size : 88*40*17.5mm

Material : ABS+PC

AGPS : support

Operating temperature : -20 ℃ ～ +70 ℃

Humidity : 5%–95%

Contact Now

Mini Size 4G GPS Tracking Device Supports GPS/Beidou/Base Station Positioning

WD-108 is a portable locator based on 4G-LTE network, which is fully compatible with global 2G / 3G / 4G / EMTC networks. The appearance is small, light and thin, easy to install, and supports triple positioning of GPS, Beidou and base station. Users can regularly monitor the daily behavior of the vehicle through the cloud platform and mobile APP.

WD-108 supports realtime tracking, Bluetooth function, power failure alarm, vibration alarm, fence alarm, remote upgrade and other functions.

Internet:

Area		China/India	Europe/Southeast Asia
Model		WD108-CN	WD108-EU
Frequency	LTE-FDD	B1/B3/B5/B8	B1/B3/B5①/B7/B8/B20①/B28
	LTE-TDD	B34/B38/B39/B40/B41	B38/B40/B41
	WCDMA	B1/B5/B8	B1/B5①/B8
	GSM/EDGE	B3/B8	B3/B8
Internet type		LTE Cat4	LTE Cat4
Note:①it means can not supports B5 and B20 at the same time, should choose one of them.

GPS:

Positioning mode	GPS/Beidou/Base station
Tracking sensitivity	＜-162 dBm
Start time	Cold start 35s, hot start 2s
Positioning accuracy	10m
Speed accuracy	0.3m/s
AGPS	Support

Parameters:

Size	88.5mm×38.5mm×12.8mm
Working voltage	DC 9-90V
Working current	Normal working mode: 50mA @12V
	Normal sleeping mode: 6mA @12V
	Deep sleeping mode: 2.5mA @12V
Inner battery	Lithium battery
Material	ABS+PC,V0 level fireproof
Working temperature	-20 ℃ ～ +70 ℃
Working humidity	10% ～ 95% (RH No condensation)
SIMcard	nano-SIM

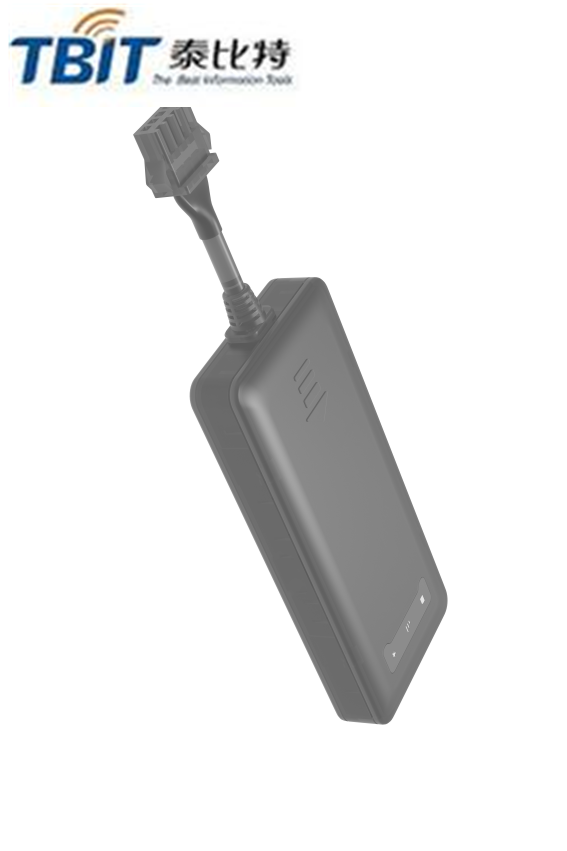

Product pictures:

Mini Size 4G GPS Tracking Device supports GPS/Beidou/Base station positioning
